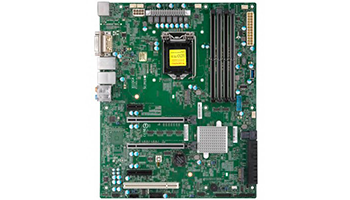

Supermicro X11SCA-B MBD-X11SCA-B



Supermicro mainboard server X11SCA-Bulk Single Socket H4 (LGA 1151), 1x LAN with Intel Ethernet Controller I210-ATSingle LAN with Intel PHY I219LM LAN controller, 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 2 PCI-Ex16 slots



Server motherboard - Processor

Intel C246 motherboard chipset

Socket 1151 processor socket

Intel Celeron processor

Intel Pentium

Intel Xeon E-2100 Series

Intel 8th Gen Processors

Intel 9th ​​Gen Processors

Intel Xeon E-2200 Series

Max. number of processors installed 1

Server motherboard - Memory

DDR4 SDRAM memory type

Proposes an ECC / non-ECC error checking method

Memory speed / frequency 1600MHz (PC4-12800)

1866MHz (PC4-14900)

2133MHz (PC4-17000)

2400MHz (PC4-19200)

2666MHz (PC4-21300)

Memory factor form DIMM 288-pin

Maximum amount of installed memory 128 GB

Total number of memory slots 4

Memory characteristics Unbuffered

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10, Level 5

SATA III-600 (8)

Storage Controller:

PCI Express 3.0 x4 (2 x M.2 (Key M))

Server motherboard - Audio outputs

Audio integrated Yes

Realtek ALC888S audio chipset

Compatible audio standards High Definition Audio

Server motherboard - Network specifications

LAN integrated Yes

Intel i210AT network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols

LAN Architecture Built-in: Gigabit Ethernet / Fast Ethernet / Ethernet (Intel i219LM)

Slots provided

PCI Express x16 2

PCI Express 3.0 x4 1

PCI Express 3.0 x1 1

PCI 1

Supported interfaces

LAN 2 (RJ-45)

USB 3.1 Gen 1 2 (USB 3.1 (type A))

USB 3.1 Gen 2 1 (USB 3.1 (type A))

1 (USB 3.1 (type C))

DVI 1 (DVI-D)

HDMI 1 (HDMI (Type A))

DisplayPort 1

Server motherboard - Features

BIOS type AMI

UEFI BIOS features

128 Mb Flash ROM

Server motherboard - Operating conditions

Max. operating ambient temperature 50 V ° C

Min. operating ambient temperature 0 V ° C

Server motherboard - Dimensions and weight

ATX form factor

Height 243.8 mm

Width 304.8 mm

Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Logistic information

Package weight - Gross (kg) 2 kg

Package weight - Net (kg) 0 kg

Number in package 1

Retail Packaging Net Weight Carton 0 kg

Retail Packaging Net Weight Plastic 0 kg

Packages in cartons 1

Package type With packaging
