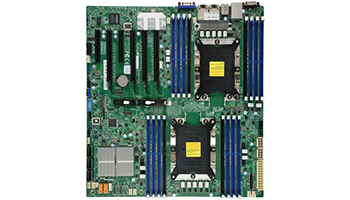

Supermicro X11DPi-NT-B MBD-X11DPI-NT-B



Motherboard MBD-X11DPI-NT 2xLGA 3647, Intel C622, 16xDDR4, 2xRJ45 10GBase-T, 14xSATA3 (6Gbps), RAID 0,1,5,10, 4xUSB 2.0 + 5xUSB 3.0, 1xVGA, 2 COM, 4xPCI-E 3.0 x16, 2xPCI-E 3.0 x8, E-ATX, Bulk.



Server motherboard - Processor

Intel C622 motherboard chipset

Socket 3647 processor socket

Scalable CPU processor

Maximum CPU bus clock speed 10.4 GT / sec

Max. number of processors installed 2

Server motherboard - Memory

DDR4 SDRAM memory type

Proposes an ECC error checking method

Memory speed / frequency 2133MHz (PC4-17000)

2400MHz (PC4-19200)

2666MHz (PC4-21300)

Memory factor form DIMM 288-pin

Maximum amount of installed memory 2 TB

Total number of memory slots 16

Memory features Registered

Load Reduced

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10, Level 5

SATA III-600 (14 x 7-pin SATA)

Storage Controller:

PCI-Express x4 (1 x M.2)

Motherboard Server - Video Output

Built-in video controller Yes

Aspeed AST2500 video card chipset

Server motherboard - Network specifications

LAN integrated Yes

Intel X557 network card chipset

Supported data exchange protocols 10 Gbps

Slots provided

PCI Express 3.0 x16 4

PCI Express 3.0 x8 2

Supported interfaces

USB 3.0 3 (USB 3.0 (type A))

VGA 1 (15-pin D-sub)

Serial 1 (9-pin)

LAN 2 (RJ-45)

Server motherboard - Features

UEFI type BIOS

Hardware monitoring System Temperature

Voltage system

Diagnostic LEDs

Server Motherboard - Software

Software included in the Watch Dog set

NMI

IPMI 2.0

Supermicro Super Doctor 5

Intel Node Manager

Supermicro Power Manager (SPM)

Supermicro Update Manager (SUM)

Server motherboard - Operating conditions

Max. operating ambient temperature 50 V ° C

Min. operating ambient temperature 0 V ° C

Max. ambient humidity 85%

Min. operating humidity 10%

Server motherboard - Dimensions and weight

Extended ATX form factor

Height 330.2 mm

Width 304.8 mm

Server motherboard - Miscellaneous

2 x SATA Data Cables included

I / O Shield accessories included

Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Logistic information

Package weight - Gross (kg) 2.1 kg

Package weight - Net (kg) 0 kg

Number in package 1

Retail Packaging Net Weight Carton 0 kg

Retail Packaging Net Weight Plastic 0 kg

Packages in cartons 1

Box type package
