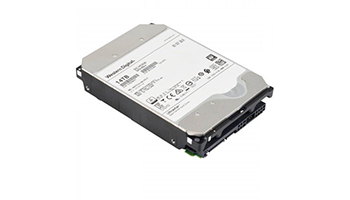

SUPERMICRO HDD-T14T-WUH721414ALE6L4 (HGST) 14TB 3.5" 7200RPM SATA3 6Gb/s 512M Internal Hard Drive
Disk configuration
Device location Internal
Form factor 3.5 "
Storage device capacity 14 TB
Supported data channel SATA III-600
Maximum capacity of sectors 512 B
Productivity
Rotation speed 7200 rpm
Average rotation delay 4.16 ms
Supported external data transfer rate 6 Gbps
Reliability
Irrecoverable errors 1 per 10 ^ 15
Average time between damages 2500000 hr
Start / stop cycles 600
Hard drive features 24/7
Impact resistance when working 70G @ 2ms
Shock resistance when stored 300G @ 2ms
Vibration tolerance at work 0.67G @ 5-500Hz
Vibration tolerance for storage 1.04G @ 2-200Hz
Energy consumption
Maximum supply voltage 12 V
Minimum supply voltage 5 V
Maximum power consumption 6 W
Minimum power consumption 5.5 W
Operating conditions
Max. operating ambient temperature 60 V ° C
Min. operating ambient temperature 5 V ° C
Max. ambient temperature in off mode 70 V ° C
Min. non-operating ambient temperature -40 V ° C
Dimensions and weight
Depth 147 mm
Height 26.1 mm
Width 101.6 mm
Nominal weight 0.69 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.5 kg
Number in package 1
