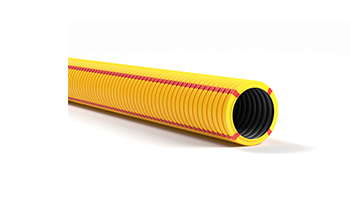

SUPERFLEX PLUS Halogen free & Low Smoke Ø20 Three-layer corrugated pipe for indoor installation, SUPERFLEX PLUS Ф20



Halogen free & Low Smoke Three-layer corrugated pipe for internal installation, Non-flammable, PP material without halogen elements, without release of toxic or corrosive gases and reduced level of smoke emission in case of fire. Smooth inner layer of material with up to 40% less friction for easy wiring. Patented technology to reduce static electricity. Patented technology for PP material that does not attract rodents. An inner layer absorbing part of the electromagnetic energy emitted by electrical conductors. Outer / Inner diameter 20 / 14.2mm. Mechanical resistance ≥320N / 5cm, impact bag. resistance: 1J (-25ºC). Outer layer in color: blue (RAL 5019) with the possibility of marking in a different color for standard separation of the wires. Working temp: -25º ~ 105ºC. Degree of protection with CONDUR connection: IP65. Suitable for installation indoors: open surface, suspended ceiling, double floor. VDE EN certificates: EN61386-1: 2008; EN61386-22: 2004 + A11: 2010; EN60754-2: 2021-02; EN61034-2: 2014-11; EN61034-2: 2005 + A1: 2013 + A2: 2020; EN50642: 2019. EN63000: 2018. Roll 100m.



Weight c.a. 3 Kgr
