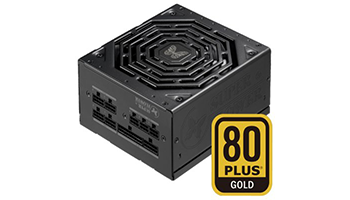

Super Flower Leadex III 750W 80 PLUS GOLD SF-750F14HG
Super Flower Leadex III 750W 80 PLUS GOLD, Full Cable Management, black, 5 years warranty
Design and features
Power supply type Power supply module
Power Location Internal
ATX form factor
Input voltage AC 100-240 V
Input frequency 50/60 Hz
Power input connectors - number 1
Power input connectors - type IEC-320 C14
Output voltage DC 3.3 / 5 / ± 12 V
Maximum output power 750 W
Over Voltage circuit protection
Undervoltage
Over Temperature
Over Current
Short Curcuit Protection
Over Power
Modular Power Supply Yes
Power supply and adapter - Features SLI Ready
Active PFC
RGB LED
80 Plus Certification 80 Plus Gold
100% efficiency
Current
+ 3.3V 20 A (100 W)
+ 5V 20 A (100 W)
+ 12V 62.4 A (748.8 W)
-12V 0.5 A (6 W)
+ 5VSB 3 A (15 W)
Output connectors
20 + 4-pin connector 1
8 pin + 12V power connector 2
4 pin peripheral power connector 1
15-pin S-ATA connector 2
6/8-pin PCI Express Connector 2
system fans
Max. number of fans supported 1
Number of fans installed 1
Fan - diameter 130 mm
Other features
Exterior color Black
Modular Cables included
Dimensions and weight
Depth 86 mm
Height 150 mm
Width 160 mm
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 1 kg
Package weight - Net (kg) 1 kg
Number in package 1
Carton weight - Gross (kg) 1 kg
Retail Packaging Net Weight Carton 1 kg
Retail Packaging Net Weight Plastic 1 kg
Packages in cartons 1
Box type package
EAN code 4711213444784
