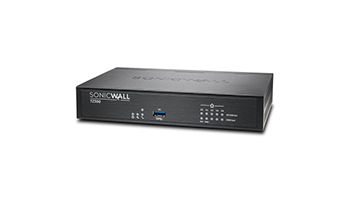

SONICWALL 01-SSC-0581 TZ300 TOTALSECURE 1YR, SMB firewall, 5x1GbE, 1 USB, TOTAL SECURE LICENSE 1 year, CGSS: Anti-Virus, Anti-Spyware, IPS, Content Filtering, Application Intelligence & Control, 24x7 Support



Network Device Type

Network Device Type Firewall/Router

Data Link Protocol Supports (New) LAN

CPU and Memory

Processor - number of cores 2

Internal clock frequency 800 MHz

Buffer memory 1 GB

Installed flash memory capacity 64 MB

External Connections

External Connection Type 1 x Modem (3G, 4G:

1 x WAN (up to 1)

LAN Connections

LAN 5 x Gigabit Ethernet/Fast Ethernet/Ethernet (10Base-T/100Base-TX/1000Base-T, up to 1 Gbps)

Switching and Routing Features

OSPF routing protocol

RIP 1

RIP 2

Static Routing

Supported Networking Compliant Standards IEEE 802.11e

IEEE 802.11i

IEEE 802.1p(QoS)

IEEE 802.3

IEEE 802.3ab

IEEE 802.3u

Supported Protocols

Protocols (OSI Model) Ethernet

PPPoE

IPv4

IPv6

IPsec

OSPF

RIP

TCP(Crypt)

UDP

L2TP

PPTP

QoS

Application Layer HTTP

HTTPS

DHCP

SNMP

UPnP

Authentication, Authorization, Accounting (AAA Protocol) RADIUS

Characteristics

Firewall Functions and Protocols SPI (Stateful Packet Inspection)

Dynamic Packet Filtering

IP Filter

URL Filter

MAC address filtering

DoS Attack Protection

Router Features Tri-Band

Antenna External

Number of wireless network antennas 3

Device Location External

Certifications FCC Class A, CES Class A, CE, C-Tick, VCCI, Compliance MIC, NOM, UL, cUL, TUV/GS, CB, NOM, WEEE, RoHS

Supported interfaces

USB2.0 1 (4 pin USB (type A))

Serial 1 (RJ-45)

Power

Maximum input frequency 60 Hz

Minimum input frequency 50 Hz

Maximum input voltage 240 V

Minimum input voltage 100 V

Maximum power consumption 24 W

Minimum energy consumption 6.9 W

Dimensions & Weight

Width 190 mm

Height 35 mm

Depth 134 mm

Nominal weight 0.84 kg

Exterior color Black

Package type Box

Terms of use

Max. working ambient temperature 40 V°C

Max. ambient air humidity 95 %

Min. operating ambient temperature 0 B°C

Min. working air humidity 5 %

Average time between failures 15 years

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package depth (mm) 134 mm

Package width (mm) 190 mm

Package height (mm) 35 mm

Package Weight - Gross (kg) 1.48 kg

Package Weight - Net (kg) 0.84 kg

Quantity per pack 1

Carton depth (mm) 134 mm

Carton width (mm) 190 mm

Carton height (mm) 35 mm

Carton weight - Gross (kg) 1.48 kg

Retail Packaging Net Weight Carton 0.42 kg

Retail Packaging Net Weight Plastic 0.22 kg

Packages in Carton 1
