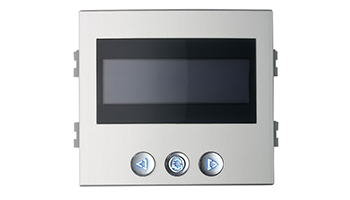

SKYLINE 7449 VDS/BUS2 SKYLINE DIGITAL DISPLAY W



DESCRIPTION



The digital display module lets you search and view in the list of residents (electronic directory) using the browser buttons (arrow keys), as well as providing communication status information.



House calls can be made in two ways:

- by entering the corresponding code assigned to the home + the "bell" key.

- by finding the code in the electronic user directory (browser buttons) and pressing the "bell" key.



The browser buttons also let you scroll through the programming menu.



Modules available:

- BUS2/VDS digital display module (Ref. 7449)

- Digital MDS display module (Ref. 7451)



Module for fitting to New SKYLINE Panel frame.



TECHNICAL SPECIFICATIONS



High contrast backlit LCD 2 line display, 16 characters per line.



Module Dimensions.

- W module: 105,2x95 mm (width-height):



Basic modules for panel configuration depending on technologies:

- BUS2/VDS Digital Display module

* Digital MDS Panel: Mod. BUS2 amplifier + BUS2/VDS Digital Display module + . BUS2/VDS/MDS Digital Keypad module

* VDS Digital Panel: Mod. VDS amplifier + BUS2/VDS Digital Display module + . BUS2/VDS/MDS Digital Keypad module



- MDS Digital Display module

* MDS Digital Panel: Mod. 4+N amplifier + VDS Digital Display module + . BUS2/VDS/MDS Digital Keypad module



Weight: 0,352732 kg



Size of product when packed: 13,5x10x6 cm
