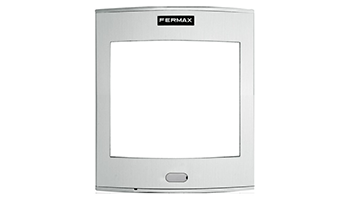

SKYLINE 7332 FRAME 2V (S2)





DESCRIPTION



The New SKYLINE electronic and video entry panel is a robust and elegant panel that stands out for its durability, beauty, resistance and reliability.



SKYLINE is a new line of modular composition continuous profile electronic and video entry outdoor panels from FERMAX. The line consists of 8 different-sized frames where the different modules can easily be fitted pushbuttons, card slots, camera, amplifier, access control, etc. The frames let you fit a given number of modules. There are two module sizes: V and W. W modules are twice as wide as the V modules.

Module Dimensions.

- V module: 105,2x47,5 mm (width-height):

- W module: 105,2x95 mm (width-height):



It is possible to combine two or more panels, as long as they are from the same series, to achieve greater capacity for pushbutton and accessories.



TECHNICAL SPECIFICATIONS



SKYLINE Frame 2V.

Series 2 Panel.

- Panel measurements: 130x151 mm (width-height):

- Flush-fit box dimensions: 115x138x45 mm (height-width-depth).

- Surface mounted box dimensions: 130x151x33 mm (height-width-depth).



Weight: 0,353509 kg



Size of product when packed: 22x13,8x4,2 cm
