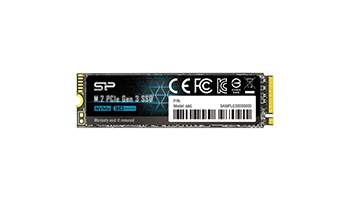

Silicon Power PCIe Gen3×4 P34A60 512GB SP512GBP34A60M28
Disk configuration
Location of the Plug-in Card device
Form factor M.2 (2280)
Storage capacity of 512 GB
Supported PCIe NVMe 3.0 x4 data channel
Certificates CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC
NAND Flash memory technology
Single-Level Cell flash memory technology
Productivity
Maximum Sequential Read Rate 2200 MB / s
Maximum Sequential Write Rate 1600 MB / s
Supported interfaces
M.2 Interface Quantity 1
Reliability
Average time between failures 2,000,000 hr
Solid State Drive Features Advanced LDPC ECC Engine
Impact resistance at storage 1500G @ 0.5ms
Operating conditions
Max. operating ambient temperature 70 V ° C
Min. operating ambient temperature 0 V ° C
Software
PC platform compatibility
Dimensions and weight
Depth 22 mm
Height 3.5 mm
Width 80 mm
Nominal weight 0.008 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.01 kg
Package weight - Net (kg) 0.01 kg
Number in package 1
Carton weight - Gross (kg) 0.01 kg
Retail Packaging Net Weight Carton 0.01 kg
Retail Packaging Net Weight Plastic 0.01 kg
Packages in cartons 1
Package type With packaging
