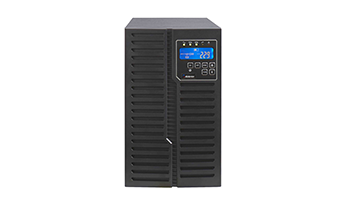

Ares UPS 1000VA/900W, Advanced DSP True On-Line technology, Ares SP1000 plus



UPS 1000VA / 900W, Advanced DSP True On-Line technology, Power Factor 0.9. Microprocessor control, 100% sinusoidal shape of the output voltage, LCD display with visualization of voltage, frequency, load, battery level, output current and remaining autonomy time; VFI double conversion for complete isolation of protected consumers, active control of current harmonics, remote ON / OFF control, Cold start, built-in overload and short circuit protection, overheat protection, overcharge protection, deep battery protection. Interfaces: 1x RS232, 1x NO EPO input for emergency shutdown from BMS / Fire / Evacuation systems, 1x USB, 1x slot for extra. Modules (SNMP / RS485 / Relay). Programmable outputs (contacts): 2x schuko, 2x IEC. EMILY2 monitoring and setup software. Charging time ~ 4 hours / 90%. Built-in battery CSB 3x 7Ah / 12V. Input for external batteries. Backup time with built-in batteries: 14min @ 50%; 9min @ 70%, 7min @ 80%, 5min @ 100%. Operating temperature: 0 ℃ ~ 40 ℃. Input voltage: AC110 ~ 300V / 44 ~ 66Hz. Dimensions: 154x211x382.4mm, 11.6kg. Standards: IEC 62040-3.
