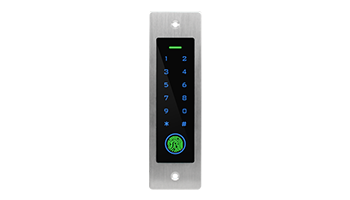

Secukey EF4 Embedded FingerKey Stand-alone card reader EM 125KHz



>Capacitive Fingerprint Sensor, touch keypad

>Metal case, embedded design

>Waterproof, conforms IP55

>One relay, 1000 users (990 common users +10 visitor users)

>Card Type: 125KHz EM Card

>Wiegand 26~44bits output

>Can be used as Wiegand reader with buzzer output

>User data can be transferred (except fingerprint users)

>Backlit keypad,can set automatic OFF after 20 seconds



stand-alone card reader EM 125KHz made of stainless steel with touch keyboard and built-in fingerprint reader. It has 1 door relay (NO, NC, Common), 1x Exit button output, Wiegand In/Out, built-in memory for up to 1000 cards, IP66 for built-in installation with Ebox 4. Access by card/PIN/fingerprint. Maximum output load to lock mechanism 2Amp, Tamper, Dimensions: 165x48x22mm, Power supply: 12-18VDC, Operating temperature: - 30 to + 600C
