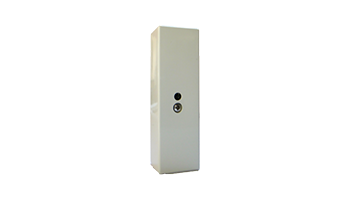

Sectron Electronics Seismic detector SS-01



The SS01 vibration detector is designed to detect attempts to break into metal cabinets, cash registers, ATMs, building structures made of wood, chipboard, plywood, glass, metal sheets, brick or concrete. SS01 can also be successfully applied to break-in doors and windows.

The sensitivity of the detector ensures registration of attempts to destroy or re-oil the protected surface with the help of manual impact, drilling and cutting tools (hammers, picks, levers, bars, matcaps, drills, saws, saws and the like), electric drilling (impact and non-impact ) and cutting tools, gas cutting and electric arc tools.

The detector provides possibilities for smooth adjustment and adjustment of the sensitivity depending on the force and number of hits on the protected surface.

Supply voltage: 8 ÷ 12 V DC

Consumption: 10 mA

Sensitivity - adjustable by means of a trimmer depending on the specific conditions;

Number of hits required to detect an alarm signal - adjustable by a trimmer depending on the specific conditions:

in case of strong shocks – the alarm is triggered with a smaller number of shocks

with weak hits – the alarm is triggered with a greater number of hits

Alarm output – optical relay 24 V, 100 mA;

Duration of the alarm signal - ~ 3 sec.;

Tamper – 24 V, 100 mA

Radius of the protected surface:

for solid monolithic structures: panels, wooden, chipboard structures - up to 1.80 m

metal cabinets, monolithic glass structures, protective sheet metal enclosures - up to 1.50m

thick-walled armored safes and safes - up to 1.0 m

Overall dimensions – 84.5x26x20 mm
