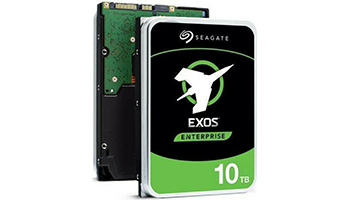

Seagate EXOS X16 10TB ST10000NM001G
SEAGATE HDD Server Exos X16 512E ( 3.5'/ 10TB/ SATA 6Gb/s / 7200rpm)
Disk configuration
Device location Internal
Form factor 3.5 "
Storage device capacity 10 TB
Supported data channel SATA III-600
Swap opportunities Hot
256 MB cache capacity installed
Maximum capacity of sectors 512 B
Productivity
Rotation speed 7200 rpm
Average rotation delay 4.16 ms
Supported external data transfer rate 6 Gbps
Reliability
Irrecoverable errors 1 per 10 ^ 15
Average time between damages 2500000 hr
Hard disk features 24/7
HelioSeal Technology
Super Parity
PowerBalance
PowerChoice Idle Power Technology
Low Halogen
Fast-Format Models
RSA 2048 Firmware Verification (SD&D)
Impact resistance when working 50G @ 2ms
Impact resistance when stored 200G @ 2ms
Vibration tolerance during operation 12.5G @ 20-1500Hz
Vibration tolerance for storage 2.27G @ 2-500Hz
Energy consumption
Maximum supply voltage 12 V
Minimum supply voltage 5 V
Maximum power consumption 9.5 W
Minimum power consumption 5 W
Operating conditions
Max. operating ambient temperature 60 V ° C
Min. operating ambient temperature 5 V ° C
Dimensions and weight
Depth 147 mm
Height 26.11 mm
Width 101.85 mm
Nominal weight 0.67 kg
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.67 kg
Package weight - Net (kg) 0.67 kg
Number in package 1
Carton weight - Gross (kg) 13.9 kg
Retail Packaging Net Weight Carton 13.9 kg
Retail Packaging Net Weight Plastic 0.25 kg
Packages in a carton 20
Box type package
