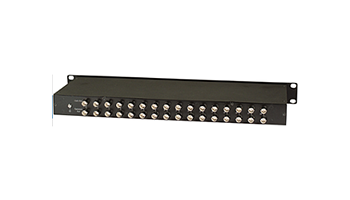

SC&T SP016HD 6-channel HD-TVI / AHD / HD-CVI Surge Protection for DVR in 1U Rack Mounting Panel

279.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 51345

Βάρος: 1.000 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

SC&T SP016HD 6-channel HD-TVI / AHD / HD-CVI Surge Protection for DVR in 1U Rack Mounting Panel

Application for protects equipment from high voltage surges such as lightning strikes.

UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding.

Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc

Features

16 x BNC male to 16 x BNC female.
Provide protection for analog HD-CVI, HD-TVI, AHD camera, DVR devices.
Comply with IEC 61000-4-5.
Built in EFT (impulse noise), lightning protection.
Provide protection for HD DVR or any equipments with multiple video inputs.

Specifications

Input and output interface : BNC (Male) x 16, BNC (Female) x 16
Surge Protection Attack Time : < 1nS
Starting voltage surge : 6V
Maximum Clamping Voltage : 25 V
Reference Standard : IEC 61000-4-5
Signal insertion loss : 0.8db @ 42 MHz
Maximum discharge current : 15 KA ( MAX )

Environmental Specifications

Operation: 0 to 55oC

Storage: -20 to 85oC, Humidity: up to 95%
