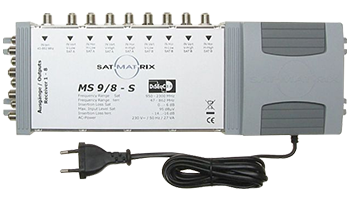

Satmatrix MS-9/8 multiswitch enables connection of eight satellite receivers (decoders) to one satellite dish, which will allow the reception of two satellites, eg (Hotbird 13 and Astra 19) and the ability to transmit terrestrial digital or analog TV signals - DVB- T.


Technical data:

Inputs: 8x 950-2300 MHz, 1x 47-862 MHz
Outputs: 8x 47-2300 MHz
Switching signal: DiSEqC 2.0
SAT branch suppression: 0 ... -6 dB
TV branch suppression: -14 ... -16 dB
Max. satellite signal level. : 95 dBuV
Max. signal level : 94 dBuV
Dimensions: 333x102x53 mm
