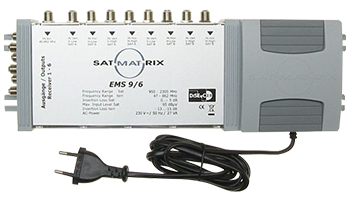

Satmatrix MS-9/6 multiswitch allows to connect to one satellite dish six satellite receivers (decoders), which will be able to receive two satellites, eg (Hotbird 13 and Astra 19) and has the ability to transmit terrestrial digital or analog TV signals - DVB- T.


Technical data:
Inputs: 8x 950-2300 MHz, 1x 47-862 MHz
Outputs: 6x 47-2300 MHz
Switching voltage: 13V / 18V, 0Hz / 22 kHz
SAT branch suppression: 0 ...- 5 dB
Switching signal: DiSEqC 2.0
TV branch suppression: -13 ... -15 dB
Max. SAT signal level: 95 dBuV
Max. signal level: 94 dBuV
Dimensions: 333x102x53 mm
