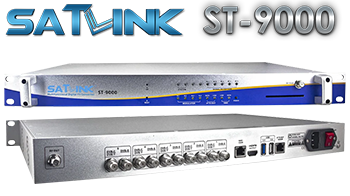

ST-9000

Multifunctional Digital TV Converter
This product is a multifunctional digital TV program converter. It can collect encrypted/free
satellite/cable/terrestrial channels, convert them into HTTP IPTV output, UDP multicast
output, or directly into DVB-T/ISDB-T output. The output signal can be watched by
IPTV/DVB-T/ISDB-T STB, or ISDB-T/DVB-T TV directly.It's mainly applied in Apartment ,
surveillance control, hotel , shops etc.


● 5 group tuner input,support DVB-S/S2,
DVB-T/T2,DVB-C and ISDB-T
● 4 group transmission frequency output,
support DVB-T and ISDB-T
● Support IPTV input (HTTP/UDP/Multicast)
● Support IPTV output (HTTP/UDP/Multicast)
● Support one 100Mbps Etherner
● Support one 1Gbps Etherner
● Support one USB3.0 interface
● Support one USB2.0 interface
● Support BISS and Smart Card
● Support remote control
● Support OTA upgrade
● Support HDMI output interface for TV setting

TECHNICAL SPECIFICATIONS
Input: RF X5
Output: RF X1 (4 Channel )
Enthernet: RJ45 X2
Power AC100~220V
USB: USB 2.0 X1
CA: CA X1

RF Input

DVB-S: ETSI EN 300-421 V1.1.2
DVB-S2: ETSI EN 302-307 V1.2.1
DVB-T2/T2-Lite: ETSI EN 302-755 V1.3.1
DVB-T: ETSI EN 300-744 V1.6.1
DVB-C: ETSI EN 300-429 V1.2.1
PART1: DVB-S/S2/S2X
Symbol rate : 1M ~45M Ksym/s
RollOff : 0.35/0.25/0.2/0.15/0.1/0.05
Demodulation types : QPSK, 8PSK, 8APSK-L,16APSK(-L), 32APSK(-L)

RF Out

DVB-C : ETSI EN 300-429 v1.2.1
DVB-T : ETSI EN 300-744 V1.6.1

PART1: DVB-T
BandWidth : 6MHz, 7MHz, 8MHz
FFT Size : 2K, 8K
Constellation : 64QAM

PART2: DVB-C
Symbol rate: 1.7 ~ 7Msym/s
Constellation : 64, 128 and 256QAM

Satellite Signal

Connector : F-Type
Input Frequency : 950~2150
Input Level: -80~-10dBm
LNB Power supply : 14V / 18V / OFF, Imax 350mA
Port Switch : DisEqc 1.0, DisEqc 1.1,

Enthernet

Connector : RJ45
Standar : IEEE 802.3
Type: 100M/1G
Funciton : IP ,NMS

Upgrade/Editor

Connector : RJ45

Funciton :

system config
RF Input setting
RF Output setting
IP
