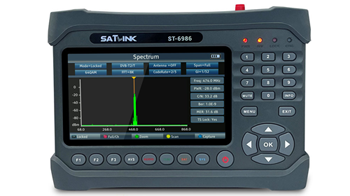

Satlink ST-6986 PRO DVB-S2/S, DVB-T/T2, DVB-C meter with Fiber Optic tester

499.00 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 11092

Βάρος: 1.200 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

ST-6986 is a DVB-S/S2X/T/T2/C and MPEG-2, H.264/AVC,H.265/HEVC (10 Bit) compliant handheld combo meter. With is compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service, attenna signal and cable signal to residential homes or multi-dwelling units. ST-6986 can only support 1080P and cannot support 4K.
7 Inch High Definition TFT LCD Screen(1024*600) .Fully DVB-S/S2/S2X,T/T2/C, MPEG-2/MPEG-4 compliant,MPEG-2 / H.264/H.265 (10 Bit) Hardware decod-ing.
Supports Constellation analyzer. Supports Spectrum analyzer. Supports scan of Auto Blind, Manual ,NIT.Supports and Light Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL ; Supports DISEQC 1.0/1.1/1.2 ,Unicable, 0/22khz Tone; Speaker Integrated. Stereo pairs of speakers; Supports both AV out and AV in; Supports HDMI IN/OUT out and AV in
Supports Wi-Fi and Ethernet connection;Optical power measurement;LNB short protect ;7.4V/5000mAh Li-ion Battery included;Software upgrade via USB port;

SPECIFICATION

Output and input:	Inputs : IEC - Ant socket, "F" - LNB socket, HDMI, AV - mini Jack input, SC / FC fiber optic input Outputs : HDMI, AV - mini Jack output, Power output, 12 V DC
Frequency range:	48 MHz ... 862 MHz @ DVB-T / DVB-T2 / DVB-C, 950 MHz ... 2150 MHz @ DVB-S / DVB-S2
Signal level:	-20 ... +80 dBm @ DVB-S / DVB-S2, -20 ... +80 dBm @ DVB-T / DVB-T2 / DVB-C, -40 ... +23 dBm - Optical power meter
LNB power supply:	13 / 18 V, max. 400 mA
Switching between bandwidths:	0 / 22 kHz
Antenna powering:	5 / 12 / 24 V @ 100 mA
DiSEqC:	1.0, 1.1,1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband systems support
Modulation:	QPSK / 8PSK / 16APSK @ DVB-S / DVB-S2 QPSK / 16-QAM / 64-QAM / 256-QAM @ DVB-T / DVB-T2 / DVB-C
Video signal test:
Programming and firmware upgrade:	via USB port
Battery power supply:	Li-Ion battery 7.4 V / 5000 mAh
Power supply:	12 V / 1.5 A (power adapter included)
Power consumption:	≤ 10 W
Main features:	7 " LCD display - 1280 x 720 px Measurement of DVB-T/T2/C, DVB-S/S2 @ MPEG2/MPEG4 signals Built-in DVB-S/S2, DVB-T/T2/C receiver allowing constant preview of the set channel Built-in MPEG-2 / H.264 / H.265 video decoder Calculation of azimuth and elevation angle Constellation diagram Analysis of the spectrum for the whole frequency band Signal measurement expressed in dBμV, C/N, BER, MER Measurement of signal strength and quality Percent indication of signal quality Built-in optical power meter - Optical wavelength : 850,1300, 1310, 1330, 1490, 1550, 1625 nm The USB connector for supporting multimedia files wma, mp3, mp4, avi, jpg, jpeg, bmp, img DisEqC automatic identification High measurement accuracy The set includes a practical case
Weight:	1.17 kg
Dimensions:	259 x 181 x 59 mm

Τιμή Μονάδος: 499.00 €
Κατασκευαστής: SATLINK
Βάρος: 1.200 kg
