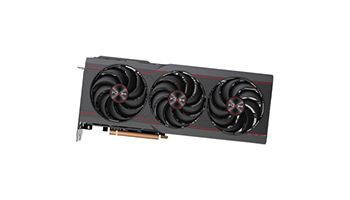

SAPPHIRE 11305-02-20G Radeon RX 6800
SAPPHIRE PULSE AMD RADEON RX 6800 OC GAMING GRAPHICS CARD WITH 16GB GDDR6
Video output
PCI Express 4.0 x16 expansion slot required
AMD Radeon RX 6800 video card chipset
GPU - Core Name NAVI 21
GPU core speed 1815 MHz
Number of GPUs 1
Number of thread processes 3840
Compute Units Quantity 60
Texture Mapping Unit Quantity 240
Render Output Units Quantity (ROP) 96
Max. Monitors Supports 4
Maximum resolution 7680x4320
2D/3D features AMD FreeSync
AMD Radeon Image Sharpening
AMD Radeon VR Ready Premium
AMD Radeon Boost
AMD FidelityFX
Video Streaming up to 8K
AMD Radeon Anti-Lag
RDNA 2 Architecture
DirectX 12.0 API support
Fill Rate (textures) 505.2 GT/s
Fill rate (pixels) 202.1 GP/s
Memory
Video memory type Video card memory
Memory type GDDR6 SDRAM
Installed video memory 16 GB
Video memory speed 16 Gbps
Memory bus capacity 256 bit
Memory channel width 512 GB/s
Supported interfaces
Number of HDMI interfaces 1
Type HDMI Interface Connectors HDMI (Type-A)
Number of monitor interface connectors 3
System Requirements
Linux operating system required
Microsoft Windows 7 or Later
The minimum amount of memory required is 8 GB
External Power 2 x 8 pin
Required power supply 650 W
Other features
Cooling system - type Tri-X Cooling
Card Slot Width 2.5 slots
BIOS Features Dual BIOS
UEFI
Dimensions & weight
Depth 303 mm
Height 53.8 mm
Width 127.3 mm
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 1 kg
Package Weight - Net (kg) 1 kg
Quantity per pack 1
Carton weight - Gross (kg) 10 kg
Retail Packaging Net Weight Carton 0.01 kg
Retail Packaging Net Weight Plastic 0.01 kg
Packages in a carton 10
Package type With packaging
EAN code 4895106289987
