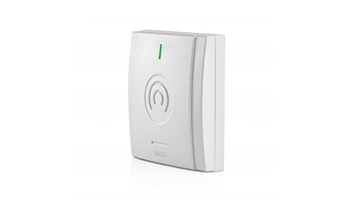

Salto RFNODE connection between Gateway and wireless lock
The SALTO wireless RF Node are the wireless messengers between the V2.0 Gateway and the Wireless locks.
-
Additional connection between Gateway and wireless lock to extend the distance or the ability to add more locks to one Gateway
-
Operating frequency: 2.4Ghz
-
Encrypted communication: AES 128bits
-
Connection to Gateway via RS 485 line
-
It is powered by the same cable
-
Operates up to 16 locks
-
Dimensions: 83mm x 83mm x 20mm (WxHxD)
-
Wireless radio frequency based on IEEE 802.15.4 at 2,4Ghz.
-
AES 128 bits encryption.
-
PoE supported IEEE802.3af.
-
One gateway can manage up to 7 nodes (1 internal + 6 external nodes).
-
Range of 10-15 meters (30-35 ft).
-
Finished in white.
