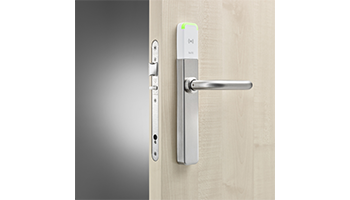

Salto Ex751 XS4 One Electronic escutcheon, 2 handles, any type, inside thumbturn, with connector for mortise lock with micro-switch



Its top quality stainless steel construction and Mifare-DESFire and BLE (Bluetooth Low Energy) technologies allow it to work with conventional smartcards and/or via SALTO’s JustIN Mobile app. The SALTO XS4 One is the evolution of the Original model with a built-in, totally new reader available in two colours. This version is compatible with most European mortise locks and cylinders. The XS4 ONE's easy-to-install design makes it simple for security professionals to upgrade security and replace mechanical-key-operated door locks with the latest electronic access control solution suitable for a wide range of customer applications.



The SALTO XS4 One escutcheon is a revolutionary stand-alone lock thanks largely to the level of technology packed inside that brings together the convenience of an offline point -- easy installation and no wires – with virtually the same kind of power and performance of an online point.



Hauptmerkmale:

simple installation is possible on any type of door, including those with narrow frames

body and escutcheon made of steel

the lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock)

complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled



ID technologies:

MIFARE® (DESFire EV1, Plus, Ultralight C, Classic - ISO/IEC 14443)

Bluetooth SMART (BLE) - Bluetooth Low Energy (BLE) for mobile apps

NFC



Housing dimensions (H x W x D)		285,0 x 42,0 x 19,5 mm
Weight		1,5 kg
Handle rotation		Max. 45°
Door thicknesses		32 bis 120 mm
Distance from the handle to the cylinder		47 bis 110 mm
Square spindles		7 mm 7,6 mm geteilt, 8 mm 8 mm geteilt 9 mm 9 mm geteilt
Power source		3 AAA-Batterien (LR03 1,5 V)
Number of openings		40.000 bis 60.000 (depending on the technology)
Maximum events on lock audit		max. 2.200 events
Environmental conditions Outdoor		+5 ºC / +50 ºC without condensation, optional -20 ºC / +50 ºC
Environmental conditions Indoor		+5 ºC / +50 ºC. without condensation
IP class		IP53 (optional IP55 for external escutcheon)
Certifications		CE, EN1906, EN 179, EN 1634-1 (Ei60, E260, E90), PAS24 (optional)
