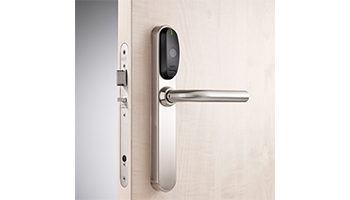

Salto Ex451 XS4 Electronic escutcheon, 2 handles, any type, inside thumbturn, with connector for mortise lock with micro-switch



XS4 is the access control platform from SALTO that enables users to control and manage a greater range of applications than ever before. Smart, secure and innovative, our XS4 electronic handle sets need no hardwiring and provide a truly wirefree networked electronic locking solution with a great range of features. Specially designed to fit on most doors, the XS4-40 narrow body version and the XS4-67 wide body version work with the majority of European, Scandinavian and ANSI mortise locks and some tubular latches.



The SALTO XS4 Original narrow body version is specially designed to fit most Euro profile doors, even narrow profile framed doors. This version also works with the majority of European mortise locks and cylinders.



Main features:

simple installation is possible on any type of door, including those with narrow frames

ID technology: i-Button, DESFire, DESFire EV1, Mifare, Mifare plus, Mifare Ultralight C, Skidata, Inside Picopass, Legic prime, Legic advant, HID iCLASS®

body and escutcheon made of steel

available with mechanical cylinder cut outs for key override or access lock outs (override European and Cam profile cylinder) with audit trail facility available

mechanical or electronic privacy option

AMOK option for offline lockdown

the lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock)

complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled



Housing dimensions (H x W x D)		282,0 x 40,0 x 20,0 mm
Weight		1,5 kg
Handle rotation		Max. 33°
Door thicknesses		32 bis 120 mm
Distance from the handle to the cylinder		47 bis 110 mm
Square spindles		7 mm 7,6 mm, split 8 mm 8 mm, split 9 mm 9 mm, split
Power source		3 AAA-Batterien (LR03 1,5 V)
Number of openings		40.000 bis 60.000 (depending on the technology)
Maximum events on lock audit		max. 1.000 events
Environmental conditions Outdoor		-20 °C up to +60 °C
Environmental conditions Indoor		0 °C bis +50 °C (with Lithium batteries -20 °C up to +60°C)
IP class		IP56 (outside), IP55 (inside)
Certifications		AbP (P-120003012, DO 20.52), Ü-Zertifikat, EN 179 (DO 20.52), CE, EN 1634-EI120, UL-10C 7), DDA 8
