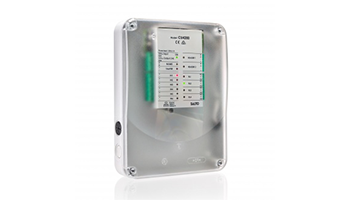

Salto CU42E0 traditional access control



SALTO’s XS4 2.0 control unit makes it even easier to bring superior access control to your facility, thanks to the ability to control and manage multiple doors through one Ethernet connection and one IP address. This means that extending SALTO access control benefits to all those doors where a stand-alone electronic escutcheon cannot be fitted (electric strikes, magnets, barriers, elevators, etc.) is even easier and more cost-effective.



Allows you to build traditional access control where needed, as well as to add online points to SALTO's SVN solution.



Supports up to two access control readers

Wiegand / own protocol for communication of the controller with the readers for access control

Access control to two doors

4 relay outputs and 6 inputs

Ability to control up to 10 doors with access control with up to 4 pcs. additional expansion modules

Compatible with SALTO expander (CU4200) and relay board (CU4EB8)

LAN interface for TCP / IP communication

Ability to work offline without connection to the system

Antipassback mode

Own box with tamper

Maximum distance between the controller and SALTO readers 400 m

Connection to the reader by means of 4 wires, twisted pair

Power supply 12VDC 400mA



Online TCP/IP networked based door control unit.

Virtual network capable through SALTO Virtual Network data-on-card technology.

Two wall reader connections that can be configured as 2 different doors or one door reader in and reader out locking.

Can control up to 4 auxiliary XS4 controllers and manage up to 10 doors.

Antipassback mode.

Door monitoring and tamper monitoring via contacts input (intrusion alarm and door left opened alarm.)

Compatible with SALTO relay expansion board,  (CU4EB8) controlling up to 128 relay outputs.

Compatible with the SALTO ProAccess SPACE alarm engine event module to manage trigger events through inputs or audit events.

ID Technologies

To be used with WRDB and WRMB wall reader range.

MIFARE® (DESFire EV1, Plus, Ultralight C, Classic - ISO/IEC 14443).

Bluetooth SMART (BLE).

NFC.
