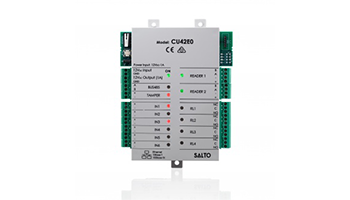

Salto CU4200 expansion module for 2 additional doors
SALTO expansion module for 2 additional doors or 2 readers. Communication with the RS485 controller. It can work completely independently in offline mode as part of SALTO's SVN solution.
-
4 relay outputs and 6 inputs
-
Own box with tampe
-
Max. distance with the reader 400m
-
Works with your own as well as Wiegand readers
-
Power supply 12V DC 400mA (without readers)
-
Maximum 4 pcs. expanders can be added to 1 controller
-
Dimensions with the box: 180mm x 240mm x 56mm (WxHxD).
