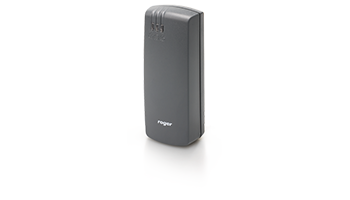

Roger PRT62EM outdoor Proximity Reader EM 125 kHz

67.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 31384

Βάρος: 0.300 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Roger PRT62EM outdoor Proximity Reader EM 125 kHz

Each PRT62EM series reader can be used as a universal identification point connected to the access controller or configured for autonomous work, as a simple access controller for a single door.

In the first case, the reader’s functionality is limited only to reading an identifier (card/PIN) and sending data to an external controller, which takes further action. In case of work in a standalone mode, PRT62EM terminals can independently supervise a single door using data entered in the process of their configuration.

Features

Power supply 12VDC
EM 125 kHz cards
programmable data output format: Wiegand 26-66bit, Magstripe (Clock and data), RS232, RACS (Roger)
various ways of PIN and keypad codes transmission
LED and Buzzer controlled through separate inputs
outdoor installation (except PRT42EM)
can be used for EMC-4 card programming (free of charge RARC software is required)
programmed manually or from PC
may operate as an offline standalone access controller
120 indexed users
authentication: Card and/or PIN
event log for 1024 transactions
built-in programmable 1.5 A/30 V relay output
two NO/NC inputs
two transistor outputs
operation with XM-2 I/O extension module
possible connection of the external PRT series reader (two way door control)
tamper
average current consumption 45 mA

reading distance up to 12 cm
dimensions: 100.0 x 40.0 x 25.0 mm (height x width x thickness)
weight: ≈100.0 g
CE mark
environmental conditions of operation:
temperature from -25°C to +60°C
humidity from 10% to 95%

Τιμή Μονάδος: 67.90 €
Κατασκευαστής:
Βάρος: 0.300 kg
