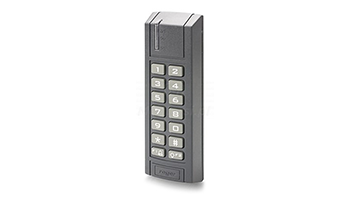

Roger PRT12EM-G Unique 125kHz proximity sensor with keyboard



The PRT12EM-G reader serves EM 125 kHz Unique cards and key fobs. It is connected to the access controller, but the possibility of more autonomous work is more real.



It is possible to use intercoms or wide intercoms using the presented converter reader.



Technical parameters:



The PRT12EM reader and access terminal are designed to work with EM 125 kHz Unique converged cards. EM series readers can be connected to a device such as an access controller (ie, their role is to read the card / code and send it to the controller), but they can also work as a stand-alone device. In this way, it is possible to build a simple access control system, which controls only one passage (state).



The PRT12EM-G is a version with a built-in keyboard, decorated in dark gray. Readers can work abroad. The length of the connected cable is 0.5 m. Illuminated silicone keyboard with two function keys, which can be configured in the RACS access control system.



Readers allow the configuration of several different output formats, m.in. popular WIEGAND. This type of transmission indicates that the readers can be used for a longer number of access controllers of other companies. When the reader interacts with RARC, the device can play the role of a programmer.
