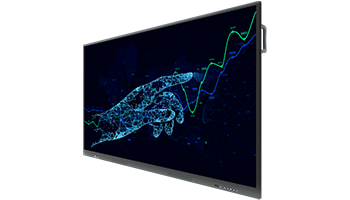

PRESTIGIO SOLUTIONS PMB000L654 MultiBoard (Monoblock) 65" Light Series: UHD: 3840x2160



Prestigio Solutions MultiBoard (Monoblock) 65" Light Series: UHD: 3840x2160, OS: Android 8.0, PC: ARM Cortex Dual Core A73+A53 / 3GB RAM / 32GB eMMC, IR MultiTouch 20 TP, 7 writing pens, Wall Mount kit



System

System type MultiBoard

All-in-One system form factor

Built-in Light Sensor devices

Remote Control accessories included

Wall Mount Kit

Quick Start Guide

Warranty card

7 Writing Pens

Screen

Screen layout Built-in

Screen type LCD

Display technology Active TFT matrix

Size of the used part of the screen 65"

Maximum resolution 3840x2160@60Hz

Image - aspect ratio 16:9

Thread type Dot Pitch

Point size 0.372 mm

Brightness 400 cd/m^2

Contrast 4000:1

Maximum response time 8 ms

Display Features LED (Backlight)

Ultra HD

Lifetime 30000h

3.2mm Toughened Glass

Touch System

Sensing Type Infrared Recognition

Touch Point 10 Points Writing and 20 Points Touch

Display Connectors

HDMI In 2.0 3

VGA 1

A/V-In 1

LAN 2

USB 2.0 3

Touch Port 2

USB 1 (USB Type-C)

Audio Line-In 1

RS232 1

HDMI Out 1

A/V-Out 1

Audio output 1

Android System

CPU ARM Dual Core Cortex A73+A53 CPU

Installed RAM storage capacity 3 GB

Internal Memory Size 32 GB

Loudspeaker

Audio output type 2.1 channel surround

Number of speakers 2

Output power per channel 15 W

Sub buffer output power 15 W

Network specifications

Network Drive Form Factor Embedded

LAN Yes

WI-FI IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n Wi-Fi 4

IEEE 802.11ac Wi-Fi 5

Wi-Fi Band Frequency 2.4/5 GHz

Bluetooth Bluetooth 2.1+EDR/4.2/5.0

Software

Operating system name Android 8.0

Power

Maximum output power 220 W

Power consumption in standby mode 0.5 W

Other features

Exterior color Black

Remote Control accessories included

Wall Mount Kit

Quick Start Guide

Warranty card

7 Writing Pens

Cables included Power cord

USB cable

HDMI cable

Compatibility PC PMB528K001, PC PMB528K002

Dimensions & weight

Height 919.7 mm

Depth 87.8 mm

Width 1511.6 mm

Nominal weight 41.5 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package depth (mm) 245mm

Package width (mm) 1660 mm

Package height (mm) 1045 mm

Package Weight - Gross (kg) 57 kg

Package Weight - Net (kg) 41.5 kg

Quantity per pack 1

Carton depth (mm) 200 mm

Carton width (mm) 160 mm

Carton height (mm) 150 mm

Carton weight - Gross (kg) 9.6 kg

Retail Packaging Net Weight Carton 0.5 kg

Retail Packaging Net Weight Plastic 0 kg

Packages in Carton 1

Package type With packaging

EAN code 8595248150546
