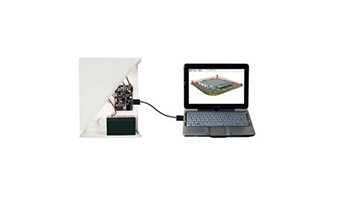

Politec TCP/IP Controller for IR & MW Column barriers, ADEBUS SMA



TCP/IP Controller for IR & MW Column barriers MANA, PARVIS, SANDOR with 1 BUS line with the possibility of adding a second BUS line with an ADEBUS S2 extender. Maximum line length 1000m. Up to 16 addresses (detectors) in a line. Memory for 32,000 events: Alarm, Tamper, OffLine Detector, Damage Detector, etc. Interfaces: 1x RJ45 Ethernet TCP/IP, 1x BUS line, 3x Programmable relay outputs, expandable up to 65 with up to 4x ADEBUS ESP. Configuration and monitoring software included. Built-in WEB server. Power supply: AC220V. Built-in power supply unit 13.8V with UPS function. Metal box with degree of protection IP44 and dimensions: 400x320x135mm with space for a battery up to 17Ah/12V.





Weight 0.100 Kgr
