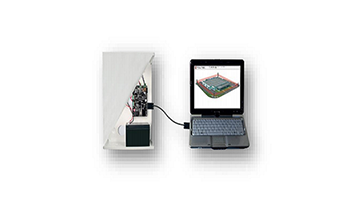

Politec TCP/IP Controller for detectors GAPID SR with 1 BUS, ADEBUS GAPID



TCP/IP Controller for GAPID SR detectors with 1 BUS line with the possibility of adding a second BUS line with an ADEBUS S2 extender. Maximum line length 750m. Up to 128 addresses (detectors) in a line. Up to 32 zones in a BUS line with a minimum of 4 detectors per zone. Memory for 32,000 events: Alarm, Tamper, OffLine Detector, Damage Detector, etc. Interfaces: 1x RJ45 Ethernet TCP/IP, 1x BUS Detector line, 3x Programmable relay outputs, expandable up to 65 with up to 4x ADEBUS ESP. Configuration and monitoring software included. Built-in WEB server. Power supply: AC220V. Built-in power supply unit 13.8V with UPS function. Metal box with degree of protection IP44 and dimensions: 400x320x135mm with space for a battery up to 17Ah/12V.
