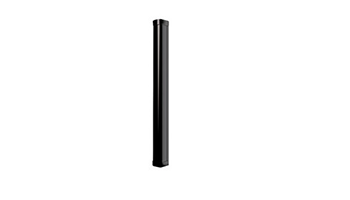

Politec Smart digital infrared barriers with narrow profile PLUS SMA 9820 150cm 16 Beam



Intelligent digital infrared barriers SANDOR PLUS SMA with a narrow profile for the protection of industrial doors, windows, facades, etc. Compatible with ADEBUS. Configuration 8 double 2TX+2RX/3TX+3RX/4TX+RX photoelectric elements (16 beams), pulse mode of operation with a wavelength of 950nm in the scheme "AND"/"OR"/ "AND"+ "OR" ("AND " 1st and 2nd row + "OR" for the rest), possibility of crossing the beams. DSP algorithm for signal analysis. Working distance 1-100m(outdoor)/200m(indoor). Antimaskin and Anti-Crawling functions, RANDOM Delay function. SMA technology for easy targeting. Optical or wired sync, work with/without sync wire. Aiming adjustment: H±180º/V±20º. Adjustable operating frequency, 4x frequency channels. Adjustable interrupt time: 50~500ms. Configuration with DIP switches or ADEBUS controller. LED and sound indication. Beam width 2°, at 50m range: ~2m. Built-in lid tamper. Outputs: 1x Relay alarm output NC; 1x Relay output tamper NC; 1x Exit Fog OC; 1x Output Antimasking. 1x RS485 for configuration and monitoring with ADEBUS. Power supply: DC12-30/150mA. Built-in heater with thermostat AC/DC 12/24V: 25/35/45W (for column 2/4/6 beams). Aluminum profile with polycarbonate cover with IR & UV filter, dimensions: 60x60x1500mm. Degree of protection IP56 (IP65 option), suitable for outdoor installation. Working temp: -25º~65ºC. Wall or pole mounting. Single intermediate column TX + RX.



Weight 2.400 Kgr
