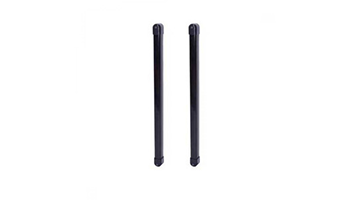

Politec Digital infrared barrier with a narrow profile SADRIN 620 200cm 12 Beam



Digital infrared barriers with a narrow profile for guarding doors, windows, facades, etc. objects with limited installation space. Configurations 6 dual photoelectric, 950nm wavelength pulse mode operation in "AND"/"OR" scheme, DSP algorithm for signal analysis. Working distance 0.4-15m(outdoor)/30m(indoor). Wire sync, working with a sync wire. Adjustable interrupt time: 150~250ms. Built-in lid tamper. Built-in sound and LED signaling, Configuration with DIP switches. Outputs: 1x Relay alarm output NC; 1x Output tamper NC; Power supply: DC13.8V/150mA (total TX+RX At ​​8 beams). Aluminum profile with polycarbonate cover with dimensions: 25x25x2000mm. Degree of protection IP54 (IP65 option), suitable for outdoor installation. Working temp: -10º~70ºC. Transmitter-receiver kit.



Weight 2.100 Kgr
