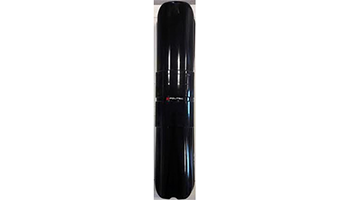

Politec Digital infrared barrier with 950nm, ALES QUAD 160



Digital infrared barrier with 950nm Four 2X2 photoelectric elements with active IR Antimasking, pulse mode of operation in "AND" scheme for each pair. Working distance 160m(outdoor)/350m(indoor). DSP management with built-in algorithms to optimize work in adverse conditions, fog, snow, rain. Anti-Fog function for stable operation in fog. Built-in LED & buzzer for signal level indication. Optical or wired synchronization, adjustable operating frequency, 4x frequency channels. Aiming adjustment: H±180º/V±20º. Adjustable interrupt time: 50~500ms. Beam width 2°, at 50m range: ~2m. Built-in lid tamper. Outputs: 1x Relay alarm output NC; 1x Output tamper NC; 1x OC output Fog, 1x OC output Antimasking. Power supply: DC 12~24V/50mA. Working Temp: -25º~70ºC. Polycarbonate housing suitable for outdoor installation with degree of protection IP65, dimensions: 78x86x405mm. Installation on a wall or pylon (set of metal plates for pylon Ф35-50 and wall). Transmitter-receiver kit. Option: built-in heater with thermostat. Compatible mounts: ALF-30L.



Weight 2.200 Kgr
