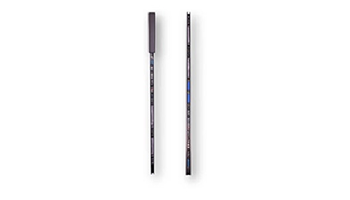

Politec Autonomous digital infrared barriers with a narrow profile SADRIN WSI 830 250cm 20 Beam



Autonomous digital infrared barriers with a narrow profile for guarding doors, windows, facades, etc. objects with limited installation space. 950nm 10 dual photoelectric cells, pulse mode operation in "AND" scheme, DSP algorithm for signal analysis. Working distance 0.4-10m(outdoor)/20m(indoor). Optical sync, work without a sync wire. Adjustable interrupt time: 150~250ms. Built-in lid tamper, the tamper signal for the transmitter is sent optically to the receiver for a single wiring point. Built-in sound alarm. Outputs: 1x Relay alarm output NC; 1x Output tamper NC; 1x Output OC dead battery. Power supply: Built-in battery: WSI: 2.7Ah/3.6V, providing autonomy for 1-2 years depending on the number of beams and intensity of alarms; Option: (WSE) 19Ah/3.6V, ensuring autonomy of 2-3 years. Aluminum profile with polycarbonate cover dimensions: 25x25.5x2500mmWSE: rammer and battery: 40x39x225mm. Degree of protection IP54 (IP65 option), suitable for outdoor installation. Working temp: -10º~70ºC. Transmitter-receiver set, 4 wall mounts.



Weight 2.300 Kgr
