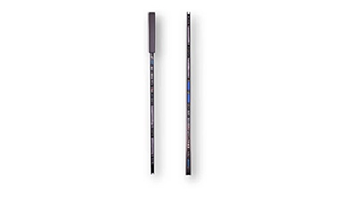

Politec Autonomous digital infrared barriers with a narrow profile SADRIN WSI 205 50cm 4 Beam



Autonomous digital infrared barriers with a narrow profile for guarding doors, windows, facades, etc. objects with limited installation space. 950nm 2 dual photoelectric cells, pulse mode operation in "AND" scheme, DSP algorithm for signal analysis. Working distance 0.4-10m(outdoor)/20m(indoor). Optical sync, work without a sync wire. Adjustable interrupt time: 150~250ms. Built-in lid tamper, the tamper signal for the transmitter is sent optically to the receiver for a single wiring point. Built-in sound alarm. Outputs: 1x Relay alarm output NC; 1x Output tamper NC; 1x Output OC dead battery. Power supply: Built-in battery: WSI: 2.7Ah/3.6V, providing autonomy for 1-2 years depending on the number of beams and intensity of alarms; Option: (WSE) 19Ah/3.6V, ensuring autonomy of 2-3 years. Aluminum profile with polycarbonate cover dimensions: 25x25.5x500mm WSE: rammer an battery: 40x39x225mm. Degree of protection IP54 (IP65 option), suitable for outdoor installation. Working temp: -10º~70ºC. Transmitter-receiver set, 4 wall mounts.



Weight 1.300 Kgr
