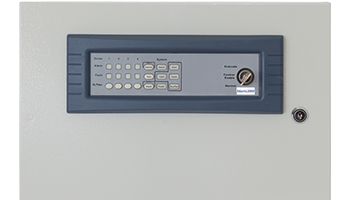

PH Svesis PH.MR.822.CP 8-zone fire detection panel



8 Detectors or fire alarm switch connection zones monitored by EOL resistors.

General alarm output monitored with EOL resistor, 24VDC voltage and current 1A.

8 monitored relay outputs (one output per zone) with EOL resistors.

Cross zoning capability with adjustable command delay time.

4 extinguishing areas. 2 zones per area.

Troubleshoot Output (free Relay NC, COM, NO contacts).

Detection and signaling of a problem in case of grounding of any cable of the installation (earth fault).

Three position switch for selecting access level 1 & 2 and space evacuation command.

Illuminated when activated keys for Reset, Silence, Test and isolation of the center zones.

Display of all conditions of the center by 22 LEDs.

Audio notification of the user for the alarm and problem situations (Buzzer).

Possibility of isolating zones from the keyboard on the front of the center.

Ability to check the detectors of the installation by the installer (walk test).

Ability to confirm alarm from zone - zones (intellizone).

Collaborates with all known market detectors.

Ability to leave the space automatically, from zone alarm, or manually, using a key.

Recording of events in the internal memory of the center with date and time of the event.

Power supply certified according to the 1988 BS5839 Part 2 Directive.

Check and signal problem in main power outage, battery drop, damaged battery.

Certifications: EC with Certification Number 00223/101/1/2010 and CPD with Certification Number 1293-CPD-0185 with full compatibility in the directive ΕΝ54 Part 2 and 4 of 1998.

Ability to display the center's functions from a PC using RS-232 and TCP / IP modules.

SmartView and ViewMatrixPlus software for real-time display of center operations from PC.
