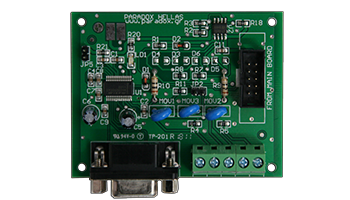

PH Svesis PH.MA.232.RS Serial RS-232/485 communication module for Matrix2000 series panels



The MRS232 / 485 module provides the possibility of connecting the MATRIX2000 centers with a local PC through their serial port.

The display of the functions and the control of the system from the PC is done with the help of the specially designed ViewMatrix Plus software, which runs in Microsoft Microsoft environment.



This software simulates keyboard and table programming in a user-friendly graphical interface on the PC screen. All functions are achieved using the mouse.



Module MRS232 / 485 also provides the ability to connect up to 7 fully functional repeaters in each center via the RS-485 port. In case a PC connection via RS232 is also used, the repeaters are reduced to 6.



The module provides galvanic isolation to the panel and PC earthing to avoid earth fault.
