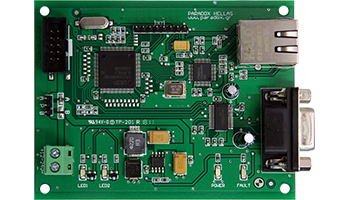

Paradox Hellas PH.SR.TCP.IP Communication Module TCP/IP – RS232 for SmartX

64.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 92105

Βάρος: 0.000 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Paradox Hellas PH.SR.TCP.IP Communication Module TCP/IP – RS232 for SmartX

Connects directly with SmartX panel’s main board (LAN-RS232 connector)

Gives the ability to access and control the SmartX fire alarm panel, locally through the RS232 port or remotely through the ethernet / internet (TCP/IP) in real time

Note: The ethernet RJ45 network cable is not included.

Power Supply

10 pin box connector 5 VDC / 12-24 VDC
Terminal Connector 12-24VDC
Consumption 250mA MAX
Connections Ethernet, Serial RS232
RS232
Ground Isolation 50 V
Connector Female D9
Ethernet
Ground Isolation Full galvanic isolation
Connector RJ45
Ethernet type 10/100 Mbps
Indications
Power Device is powered
Fault Ground isolation potential is more than 50 V
LED1 Remote client connected
General
Operating Temperature From 0°C to 50°C (From 14°F to 122 °F)
Humidity 95% max.
Dimensions 7.4 x 9.7cm

Τιμή Μονάδος: 64.90 €
