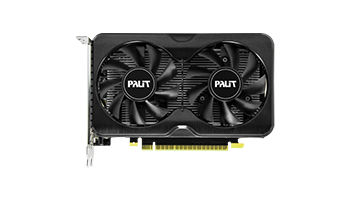

PALIT 4710562243345_3Y GeForce GTX 1630
Palit GeForce GTX 1630 Dual 4GB DDR6, 64 bit, 1x HDMI, 2x DP, PCI-E 3.0 x16, recom. power 300W, Pwr consump. 75W, 1x 6-pin pwr connector, NE6163001BG6-1175D
Video output
PCI Express 3.0 x16 expansion slot required
Nvidia GeForce GTX 1630 video card chipset
GPU core speed 1740 MHz
GPU Core Speed Boost 1785 MHz
Number of GPUs 1
Number of thread processes 512
Texture Mapping Unit Quantity 32
Render Output Units Quantity (ROP) 16
Max. Monitors Supports 3
Maximum resolution 7680x4320
2D/3D features Nvidia CUDA
Nvidia GPU Boost
Nvidia G-Sync
Nvidia Ansel
Nvidia Turing
Nvidia Highlights
NVIDIA Game Ready
DirectX 12.0 API support
OpenGL 4.6
Memory
Video memory type Video card memory
Memory type GDDR5 SDRAM
Installed video memory 4 GB
Video memory speed 1500 MHz
Memory bus capacity 64 bit
Memory channel width 96 GB/s
Supported interfaces
Number of HDMI interfaces 1
Type HDMI Interface Connectors HDMI (Type-A)
Number of interface connectors for monitor 2
System Requirements
External Power 6 pin
Required power supply 300 W
Other features
Cooling system - type VGA Cooler
Card Slot Width 2 slots
Included accessories User manual
Power
Power consumption during operation 75 W
Dimensions & weight
Depth 170 mm
Height 40 mm
Width 112 mm
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 0.35 kg
Package Weight - Net (kg) 0.2 kg
Quantity per pack 1
Carton weight - Gross (kg) 0.35 kg
Retail Packaging Net Weight Carton 0.2 kg
Retail Packaging Net Weight Plastic 0.2 kg
Packages in Carton 1
Package type With packaging
