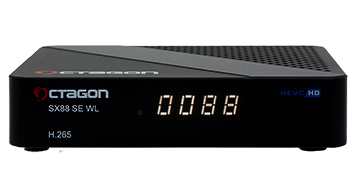

"As a multimedia box with Linux operating system, the OCTAGON SX88 SE V2 HD H.265 S2+IP receiver offers a dual-core 32-bit CPU with 2×800 MHz, ARM Cortex-A7 dual CPU and razor-sharp resolution. Now equipped with HDMI CEC support. This powerful box combines state-of-the-art hardware with a wide range of entertainment options and supports all the usual functions of a modern multimedia box."

Main features:
- ARM Cortex-A7 dual processor
- GX6613H2 GX-National
- Dual Core 32-Bit (2x 800MHz) 3000 DMIPS
- Multi-core High Performance GPU
- Flash memory 128MB
- RAM 256MB DDR3
- Fast boot time of 15 seconds
- LAN Ethernet (100Mbps)
- 4-digit 7-segment display
- Card reader + Hardware BlindScan (blind search)
- DVB-S2 tuner + multistream support
- HDMI 1.4b - HDCP1.4
- USB 2.0
- Permanently installed WiFi module (150Mbit WLAN built-in)
- Infrared receiver for concealed installation
- HDMI CEC support
- E2 (Enigma2) setting support
- Teachable multifunction remote control

Features & Functions:
- Linux OS operating system
- Resolution: FHD 1080P H.265 HEVC (1920 x 1080)
- Customised extensions and logo support
- Internet Radio & YouTube
- Media libraries of the public broadcasters
- USB 2.0 connection
- SatLess Multiroom TV client system for Enigma2 receivers
- User-friendly OSD interface
- WebIF & FTP access
- Card reader
- Recording & TimeShift
- Network 10/100Mbit LAN
- Built-in WiFi (internal)
- 3G modem support via USB port
- DLNA Player (DMS, DMR) & Built-in Media Player
- Playback of M3U playlists
- iOS and Android app (.apk) remote control & web browser (WebIF)
- Unicable & FastScan support
- DiSEqC 1.0, 1.1, 1.2 and USALS support
- EPG - Electronic Programme Guide
- High-resolution OSD UI user interface
- 4x programmable buttons on the remote control
- Direct buttons for WebTV, VOD and YouTube
- Subtitle & Teletext (Videotext) support
- 0.5W standby
- 12V connection (also suitable as a camping receiver for motorhomes or caravans. 12V car adapter not included)
- Dimensions (LxDxH) 125 x 95 x 25mm

Front panel:
- LED display (red / green)
- 4-digit 7-segment display
- IR sensor (infrared receiver)

Rear side:
- DVB-S2 tuner LNB input
- Digital audio socket (S/PDIF)
- AV - Audio Video socket - jack to RCA
- HDMI 1.4b output
- Network 10/100Mbit connection
- DC-12V power supply
- CA card reader

Side (left):
- USB 2.0 port
- LED/IR (external display or IR infrared receiver) connection
- Recovery (RESET) button for maintenance & service

Scope of delivery:
- Receiver OCTAGON SX88 SE V2 WL HD H.265 S2+IP
- Programmable remote control
- Power supply adapter
- HDMI cable
- IR infrared receiver
- Operating instructions (German & English)
- 2 x batteries

Tuner & Demodulator:
- RDA5815m & S2 GX1133

Other:
- Dimensions (LxDxH) 125 x 95 x 25mm
- EAN barcode 4260189999991
- Power supply unit (power supply) DC12V-1.5A
