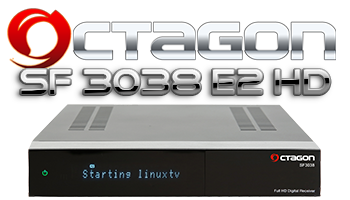

Digital HDTV Receiver for Satellite (DVB-S2), cable television (DVB-C) and terrestrial (DVB-T2) Empfang.Eine new generation of E2 HD Linux Triple Tuner Receiver from OCTAGON with crystal clear HD picture, two card readers and CI slot.
Incorporating an internal hard disk (2.5 inch) and also external hard drives via e-SATA & USB connection possible. Altogether 3x USB ports are offered
(1xvorne, 2xhinten).
In addition, the OCTAGON SF3038 has an Ethernet 10/100/1000 Gigabit port.
Linux operating system with open source E2 HD. Advanced EPG and HbbTV and much more.

Features Octagon SF3038 HD E2:
- 3 male and mixable, Plug & Play tuner
- DVB-S2 / C / T2
- Touchscreen Front Power button
- Internet Browser
- HbbTV
- HDMI 1.4 connection
- HD PIP
- Gigabit Lan
- Plug & Play support for 2.5 "SATA - Hard Drives
- Large VFD display (16 digits)
- Power switch

- Boot time ~ 35 seconds
- 3000MIPS processor (3K DMIPS)
- Broadcom 7241 chip with 2 x 1300 MHz
- Linux E2 HD Bert actuator system
- 10/100/1000 network interface
- Supports downloadable plugins (. Eg Plugin for EPG, browser and more.)
- 512MB Nand Flash / 1GB (1000MB) DDR RAM
- Fully automatic / manual channel search
- DiSEqC 1.2 & USALS, Unicable & Fastscan
- HbbTV & media libraries and much more.
- Consumption Deep-standby 0,5Watt, operating 12Watt (without HDD)

Connections Octagon SF3038 HD E2:
1 x USB Front
2 x USB Rear
2 x Conax Card reader
1 x CI slot
1 x network 1Gbit with Wake on LAN feature
1 x HDMI 1.4
1 x RCA RCA Audio & Video
1 x SPDIF Digital Audio Out
Dimensions (L x W x D): 260 × 135 × 45 mm
Weight: 2.5kg
EAN Barcode: 4260189991704

Delivery Octagon SF3038 HD E2:
OCTAGON SF3038 E2 HD satellite receiver
Remote control incl. Batteries
external power adapter / power cord
HDMI Cables
Quick Reference Guide
Disk Holder incl. Cable & screws.
