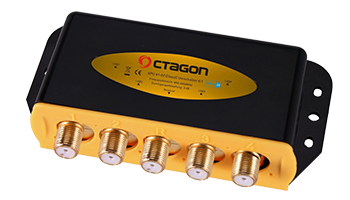

Octagon ODS 41-02 HQ OPTIMA DiSEqC switch 4/1 Gold
With the OCTAGON OPTIMA DiSEqC HQ series switches you acquire not only first-class quality, but also very latest technology. The new ODS OCTAGON OPTIMA DiSEqC switch, impresses with its quality and easy installation. The weatherproof enclosure, offers protection against wet and snow. The attachment of the DiSEqC switch, is possible on a pole or on a wall bracket.

Suitable quad and octo LNBs - For Single - Twin.
The Octagon ODS 41-02 DiSEqC switches, used to switch two / four satellites, with a conduit for a digital receiver.

Technical specifications:
Inputs: 4
Outputs: 1
Gold plated inputs and output
Input frequency: 950 ~ 2400 MHz
Through loss: <2 dB
Power consumption: 15mA
Max. Load: 500mA
. Input / Output Impedance: 75 Ohm
Temperature range: 0 ~ 60 ° C
Output: A / B or 1/2 A / B / C / D or 1/2/3/4
Control: DiSEqC 2.0
Criteria: DiSEqC and ToneBurst-Compatible
Insulation: twin Quad and Octo fit (ISO HI)
Assurance: Inputs & Output short-circuit protection
Housing: plastic weatherproof housing
