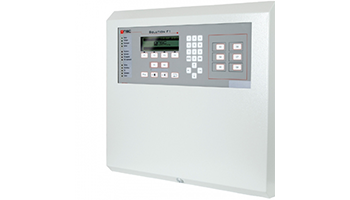

NSC KIT Configuration 2 contains:1 x B01050-00, 1 x B01405-00, 1 x B01200-00, 1 x B01220-00, 1 x B01262-00



Addressable control panel NSC Solution F-1 with 2 circuits up to 127 addresses per circuit

ESP Hochiki protocol with 32 LED zone indication.

The control panel has a graphic display 240x64 pixels, 8 programmable push buttons, archive for 10000 events, 3 x RS-232, 1xRedundant RS485.4 programmable relays, 8 programmable traceable inputs, 4 outputs with 24V / 1A power supply with fuse, 3 siren outputs , possibility for remote access to the panel, as well as for networking up to 128 panels / repeaters. Max. length of the circle up to 3500 m. VDS certified according to EN54-2, EN54-4

Expansion options: The control panel has 3 expansion slots for up to 6 rounds at 127 addresses (with contour maps B01262-00 / B01272-00) or adding up to 24 conventional zones (with module B01300-00 for adding 8 conventional zones). For 4 round configuration please add 1 pc. contour board B01262-00; for 6 circuit configuration, please use 3 circuit boards B01272-00 and 1 CPU - F20040-11. Possibility to expand up to 96 LED zones with the addition of module B01220-00 (1 module = 32 LED zones). Possibility to add a fire extinguishing module with up to 3 fire extinguishing zones.
