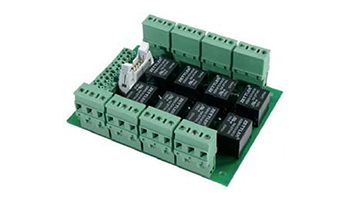

NSC B01330-00 Universal Relay card with 8 c/o contacts
Universal Relay card with 8 c/o contacts
- For universal applications but ideally for systems F1 and F2
- 8 programmable dry relay contacts (250V/5A)
- Pluggable terminals for easy service / wiring
- Activation e.g. by O/C output of loop card/ conventional detector card
- Possibility of “Unset Mode” in case of maintenance of the system
Technical specifications:
-
Quiescent current : 5 mA
-
Contacts: 8 x change over
-
Max. Load :250V AC / 5 A
-
Weight : 200 g
-
Dimensions: (W x H x D): 127 x 85 x 20 mm
-
VdS No. : G 205 024
