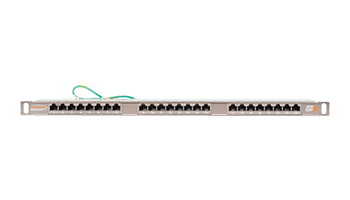

NIKOMAX NMC-RP24SE2-HU-MT Shielded patch panel, 24 ports, 19 ", 0.5U, Category 6



Shielded Patch Panels are designed for connecting different SCS subsystems and network equipment to each other with patch cords. NIKOMAX NMC-RP24SE2-HU-MT (Cat.6) and NMC-RP24SD2-HU-MT (CAT5), high-density panels are made of steel, fully shielded housings and designed for installation in 19’’ cabinets and racks. These panels contain 24 port RJ45 / 8P8C at a height of only 0.5 U. This solution is ideal to provide a high port density need (e.g., data centers) or to extend the network in the limited space of the cabinet. Universal IDC contacts for 110 / KRONE type knives are located on the rear side of panels . The panels offer two wiring standards: T568 A and B. Shielded cable are grounded in pairs on the screw terminals. The cassette provided the 9th ground to IDC-contact - specifically for the drain wire of the cable which both sides of the PCB have a common ground bus. For better shielding against electromagnetic interference and improve communication with unpainted rails cabinet, steel body panels are galvanized with nickel. A built-in organizer for secure fastening of cables.



NIKOMAX Patch panel 24xRJ45, shielded, Cat.6 250Mhz, 19 "0.5U, Cable dimensions: 22 ~ 24AWG, GRAY color, charged, Made of 1.5mm nickel-plated steel, with gold-plated contacts for over 750 inclusions, Universal for tool type 110 / Krone, color connection diagram T568A / B, removable rear shelf for cable routing, earthing cable included, port numbering, operating temperature: -10 ° C ~ 60 ° C Standards: ISO / IEC 11801, EN 50173 ; TIA / EIA-568-C.2.5 Years component warranty (Option: 25 years system warranty).



Weight 1.32 Kgr
