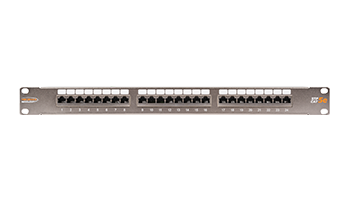

NIKOMAX NMC-RP24SD2-1U-MT Shielded patch panel, 24 ports, 19 ", 1U, Category 5e



Shielded Patch Panels are designed for connecting different SCS subsystems and network equipment to each other with patch cords. NIKOMAX NMC-RP24SA2-1U-MT (Cat. 6A), NMC-RP24SE2-1U-MT (Cat.6) and NMC-RP24SD2-1U-MT (CAT5) patch panels are made in stainless steel, fully shielded enclosures. They are designed for installation in 19 ‘‘ cabinets and racks. The panels have a standard height of 1U and can accommodate 24 port RJ45 / 8P8C. Universal IDC contacts for 110 / KRONE type knives are located on the rear side of panels . There are two wiring standards: T568 A and B. Shielded cable are grounded in pairs on the screw terminals. The cassette provided the 9th ground to IDC-contact - speci cally for the drain wire of the cable which both sides of the PCB have a common ground bus. For better shielding against electromagnetic interference and improve communication with unpainted rails cabinet, steel body panels are galvanized with nickel. A built-in organizer for secure fastening of cables.



NIKOMAX Patch panel 24xRJ45, shielded, Cat.5e 100Mhz, 19 "1U, Cable dimensions: 22 ~ 24AWG, GRAY color, charged, Made of 1.5mm nickel-plated steel, with gold-plated contacts for over 750 inclusions, Universal IDC connector with 9 slots made of phosphor bronze with tinned contacts for tool type 110 / Krone, color connection scheme T568A / B, removable rear shelf for cable routing, grounding cable included, port numbering, label windows, operating temperature: -10 ° C ~ 60 ° C Standards: ISO / IEC 11801, EN 50173, TIA / EIA-568-C.2 5 years component

warranty (Option: 25 years system warranty).



Weight 1.44 Kgr
