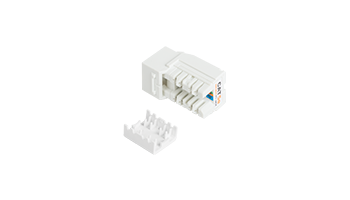

NIKOMAX NMC-KJUD2-FT-WT Fast Termination series keystone jack, Unshielded, Category 5e



NIKOMAX Fast Termination jacks («FT» series) are speci cally designed for use with a quick termination tool (NMC-FT-TOOL). All you need is to spread the cable to the module contacts, insert it into the tool and simply squeeze the handles. The accurate and high-quality termination in just a single click! The IDC contacts of FT jack are also compatible with punch down tool with 110/KRONE knife. The jacks are fully compatible with all NIKOMAX components. Only 17 mm width and a standard height allows you to install them in any snap-in patch panels, including high density models with 0.5U height. NMC-KJUD2-FT-WT (CAT.5e) are made from durable plastic, making them ideal for the unshielded systems.



NIKOMAX Unshielded Jack, Cat.5e for Gigabit network up to 100 MHz, gold-plated contacts> 0.120 μm, crimping with 110 / KRONE tool or FT-TOOL with single core cables AWG 22-24, TIA 568 A and B, Wiring color code label , 750 switching cycles, ISO / IEC 11801, EN 50173 and ANSI / TIA-568-C.2 standards, operating temperature from -10 ° C ~ 60 ° C. 5 Years component warranty (Option: 25 years system warranty).



Weight 0.010 Kgr/pcs, 150 pcs. 1.7 Kgr, 600 pcs. 7.4 Kgr
