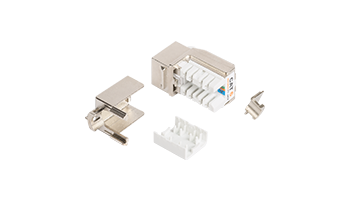

NIKOMAX NMC-KJSE2-FT-MT Fast Termination series keystone jack, Shielded, Category 6



NIKOMAX Fast Termination jacks («FT» series) are speci cally designed for use with a quick termination tool (NMC-FT-TOOL). All you need is to spread the cable to the module contacts, insert it into the tool and simply squeeze the handles. The accurate ✓ Delta Certi ed : NMC-KJSA2- and high-quality termination in just a single click! The IDC contacts of FT jack are also FT-MT, NMC-KJSE2-FT-MT compatible with punch down tool with 110/KRONE knife. The jacks are fully compatible with all NIKOMAX components. Only 17 mm width and a standard height allows you to install them in any snap-in patch panels, including high density models with 0.5U height. NMC-KJSE2-FT-MT (Cat.6), are made in fully shielded, zinc-aluminum alloy housing. After install, a shielded cable will be safely locked between a strain relief on the jack cover and a clip from the bottom, providing a full grounding with good electrical contact with the jack body. On the strain relief there is also a mount for the grounding wire.



NIKOMAX Shielded Jack, Cat.6 for Gigabit network up to 250 MHz, gold-plated contacts> 0.120 μm, crimping with 110 / KRONE tool or FT-TOOL with single-core cables AWG 22-24, TIA 568 A and B, Wiring color code label , 750 switching cycles, additional plate for better cable shielding, ISO / IEC 11801, EN 50173 and ANSI / TIA-568-C.2 standards, operating temperature from -10 ° C ~ 60 ° C. 5 Years component warranty (Option: 25 years system warranty).



Weight 0.022 Kgr/pcs, 150 pcs. 3.4 Kgr, 600 pcs. 14.4 Kgr
