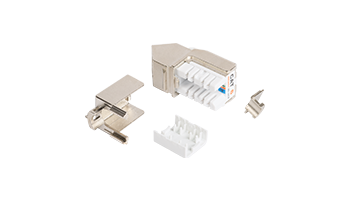

NIKOMAX NMC-KJSE2-AN-MT Fast Termination series keystone jack with angled ports, Shielded, Category 6



NIKOMAX Fast Termination jacks with angled ports («AN» series) are speci cally designed for use with a quick termination tool (NMC-FT-TOOL). All you need is to spread the cable to the module contacts, insert it into the tool and simply squeeze the handles. The accurate and high-quality termination in just a single click! The IDC contacts of FT jack are also compatible with punch down tool with 110/KRONE knife. A feature of AN series jacks is the angled ports that allows you to conveniently spred and lay patch cords to the sides and fasten them to the vertical cable organizer. This solution does not require the installation of standard cable management units, saving every third unit in cabinet. AN series jacks are only compatible with NMC-RP24-BLANK-AN-1U-MT patch panel. NMC-KJSE2-AN-MT (Cat.6), are made in fully shielded, zinc-aluminum alloy housing. After install, a shielded cable will be safely locked between a strain relief on the jack cover and a clip from the bottom, providing a full grounding with good electrical contact with the jack body. On the strain relief there is also a mount for the grounding wire.



NIKOMAX Shielded Jack, Cat.6 AN series for corner uncharged patch panel and Gigabit network up to 250 MHz, 1800 cable output, gold-plated contacts> 0.120 μm, crimping with 110 / KRONE tool or FT-TOOL with single core cables AWG 22-24, TIA 568 A and B, Label with color wiring code, 750 switching cycles, standards ISO / IEC 11801, EN 50173 and ANSI / TIA-568-C.2, operating temperature -10 ° C ~ 60 ° C. 5 years component warranty, option 25 years system warranty.



Weight 0.022 Kgr/pcs., 120 pcs. 3.5, 480 pcs 14.9 Kgr
