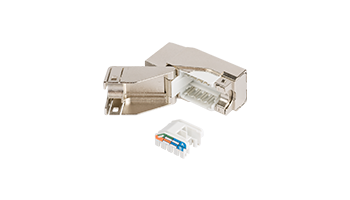

NIKOMAX NMC-KJSA2-NT-MT Tool-less, Shielded, Category 6A



NIKOMAX Toolless jacks («NT» series), do not require a special tool for termination. The inner insert provides convenient and high quality termination with anhanced crosstalk characteristics. The jacks are fully compatible with all NIKOMAX components. Only 17 mm width and a standard height allows you to install them in any snap-in patch panels, including high density models with 0.5U height. NMC-KJSA2-NT-MT (Cat.6A), are made in fully shielded, zinc-aluminum alloy housing. After install, a shielded cable will be safely clamped between the hinged lid and the module’s built- in spring-loaded clip body. This design provides a constant and close contact with the screen, do not worsen over time.



NIKOMAX Shielded Jack, Cat.6a for Gigabit network up to 500 MHz, gold-plated contacts> 0.120 μm, crimping without tools with single-core cables AWG 22-23, TIA 568 A and B, Label with color wiring code, 750 switching cycles, additional plate for better shielding with cable, standards ISO / IEC 11801, EN 50173 and ANSI / TIA-568-C.2, operating temperature from - 10 ° C ~ 60 ° C. 5 Years component warranty (Option: 25 years system warranty).



Weight 0.035 Kgr/pcs., 120 pcs. 4.4, 480 pcs 18.4 Kgr
