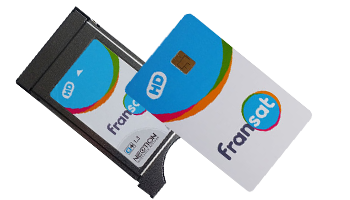

Neotion CI+ FRANSAT CAM
Fransat mini decoder for satellite HD TV with satellite tuner



CAM for receivers or TV sets equipped with a common interface slot (DVB-CI+) and a satellite tuner giving access to Fransat french satellite package.
Channels     top
barre

Fransat

General interest :
TF1, C8, France 2 HD, France 3, France 4, M6, M6 HD, NRJ 12, TFX, TMC, W9, France Ô, 6ter, Chérie 25, Numero 23, Canal + (FTA programs)*

News :
BFM TV, LCP Public Sénat, France Info, TV5Monde, LCI

Discovery :
Arte HD, Arte, France 5, TV8 Mont Blanc*, RMC Découverte, Mont Blanc Live (MB Live)

Entertainment :
C Star, TF1 Séries Films

Kids :
Gulli

Sport :
L'Equipe 21

Regional :
Vosges TV

Religion :
Kto *


cam FRANSAT Neotion
Main technical specifications
Designation :     Module PCMCIA Fransat
Brand :     Neotion
Definition :     High definition
Dedicated solution :     FRANSAT
Use :     End user
Reception
Encryption :     Viaccess Secure CW 64 bits
Decrypt :     Dual
Max. number of channels :     2
User interface
Parental control :     Yes
Multilingual menus :     Yes
Plug and Play :     Yes
OTA soft download :     per satellite
Multimedia
Flash memory :     16
SDRAM :     128
Standard and Compatibility
DVB Common Interface Compatible :     EN50221
DVB MPEG 2 & 4 :     Satellite TV, SD, HD
Data :     Privates, Teletext
Compatible version :     Viaccess 5.0
Smart card :     ISO 7816-3
CI+ :     1.3
Various
Dimensions in mm L x l x H :     100 x 55 x 4
Weight :     46g
Consuption while moving (Watts) :     5 volts
Warranty :     2 years
Package content
Product :     Module Fransat
Smart card :     Yes
FRANSAT HD card
Main technical specifications
Operator :     Fransat
Product type :     Offre dédiée
Duration :     aucune
Thematic :     General interest
Language :     French
Definition :     High definition
Number of channels :     33
Reception
Type of reception :     Satellite
Via :     Eutelsat 5 5°West (AB3)
Encryption :     Viaccess Secure
Standard :     MPEG-2, MPEG-4
Package content
Smart card :     Yes



Only the satellite Televisions with CI+ common interface are compatible with the Fransat CAM.
To be able to receive Fransat, Your dish must be pointed at Eutelsat5 (AB3) on 5,0° West.


See below the list of frequencies of this package :
Satellite of reception     Frequency     Polarity     Modulation     Symbol rate     FEC
EUTELSAT 5 5°West (AB3)     10971     Vertical     DVB-S2 8PSK     SR 29950     3/4
EUTELSAT 5 5°West (AB3)     11096     Vertical     DVB-S2 8PSK     SR 29950     3/4
EUTELSAT 5 5°West (AB3)     11471     Vertical     DVB-S2 8PSK     SR 29950     3/4
EUTELSAT 5 5°West (AB3)     11554     Vertical     DVB-S QPSK         SR 29950     7/8
EUTELSAT 5 5°West (AB3)     11555     Vertical     DVB-S QPSK        SR 29950     7/8
EUTELSAT 5 5°West (AB3)     12564     Vertical     DVB-S QPSK      SR 29950     7/8
